BNC型系列連接器
BNC Connector Series
BNC型連接器適用于低功率，它利用卡口連接機構經獲得快速連接和分高，廣泛地用于無線電設備和電子儀器中連接射頻同軸電纜。特性阻抗50Ω和75Ω。
The BNC connectors are for low power, quick connec connect/disconnect applications using a bayonet type coupling mechanism. They are widely used connect of the RF coaxial-cables in electronic equipment and instruments. Characteristic impedance 500Ω and75Ω.

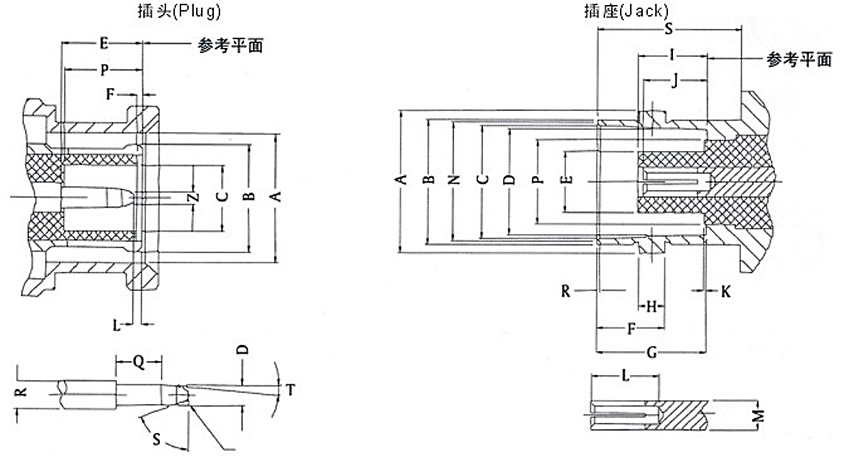

頭部尺寸 INTERFACE DIMENSIONS(mm)
| Plug插頭 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
9.78 |
9.91 |
| B |
- |
- |
| C |
4.83 |
- |
| D |
1.32 |
1.37 |
| E |
5.33 |
5.84 |
| F |
0.15 |
0.3 |
| L |
0.08 |
- |
| N |
- |
0.64 |
| P |
5.28 |
5.79 |
| Q |
1.98 |
- |
| R |
2.06 |
2.21 |
| S |
55° |
65° |
| T |
1° |
4° |
| Jack插座 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
10.97 |
11.07 |
| B |
9.6 |
9.7 |
| C |
8.31 |
8.46 |
| D |
8.1 |
8.15 |
| E |
- |
4.72 |
| F |
5.18 |
5.28 |
| G |
8.31 |
8.51 |
| H |
1.91 |
2.06 |
| I |
4.78 |
5.28 |
| J |
4.72 |
5.23 |
| K |
- |
0.15 |
| L |
4.95 |
- |
| M |
2.06 |
2.21 |
| N |
8.79 |
9.04 |
| P |
- |
6.5 |
| R |
0.38 |
0.76 |
| S |
10.52 |
- |
|
