MMCX微小型射頻同軸連接器
MINIATURE MICROAX RF COAXIAL CONNECTORS
MMCX系列射頻連接器是一種比MCX更小的微型產品。它體積小、重量輕、連接方便可靠。廣泛用于對系統(tǒng)體積、重量都有要求的小型通訊、網絡設備中連接射頻同軸電纜。
The series of MMCX radio frequency joining device is a kind of microminiaturized product smaller than MCX.It is small,light,joins convenient and reliable.Use for to system volume,Serious to have small-scale communication,network equipment that require join the coaxial cable of the radio frequency extensively.

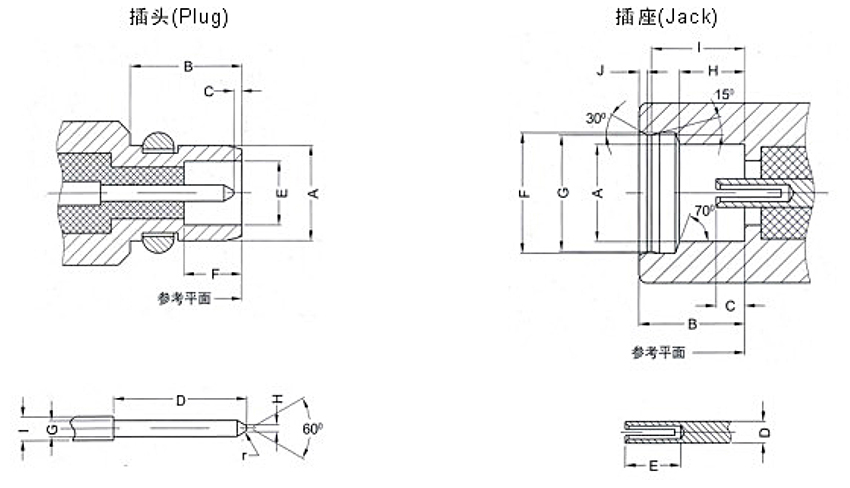

界面尺寸 INTERFACE MATING DIMENSIONS
| Plug插頭 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
2.41 |
- |
| B |
2.6 |
- |
| C |
0.9 |
1.2 |
| D |
0.70nom |
| E |
1.4 |
- |
| F |
3 |
3.4 |
| G |
2.88 |
2.9 |
| H |
1.57 |
1.63 |
| I |
2.3 |
2.34 |
| J |
- |
0.23 |
| Jack插座 |
| Code代號 |
Millimeters |
| MIN |
MAX |
| A |
- |
2.4 |
| B |
2.7 |
- |
| C |
0 |
0.25 |
| D |
- |
3.15 |
| E |
1.58 |
1.62 |
| F |
1.45 |
- |
| G |
0.38 |
0.42 |
| H |
- |
0.2 |
| I |
0.70nom |
|
